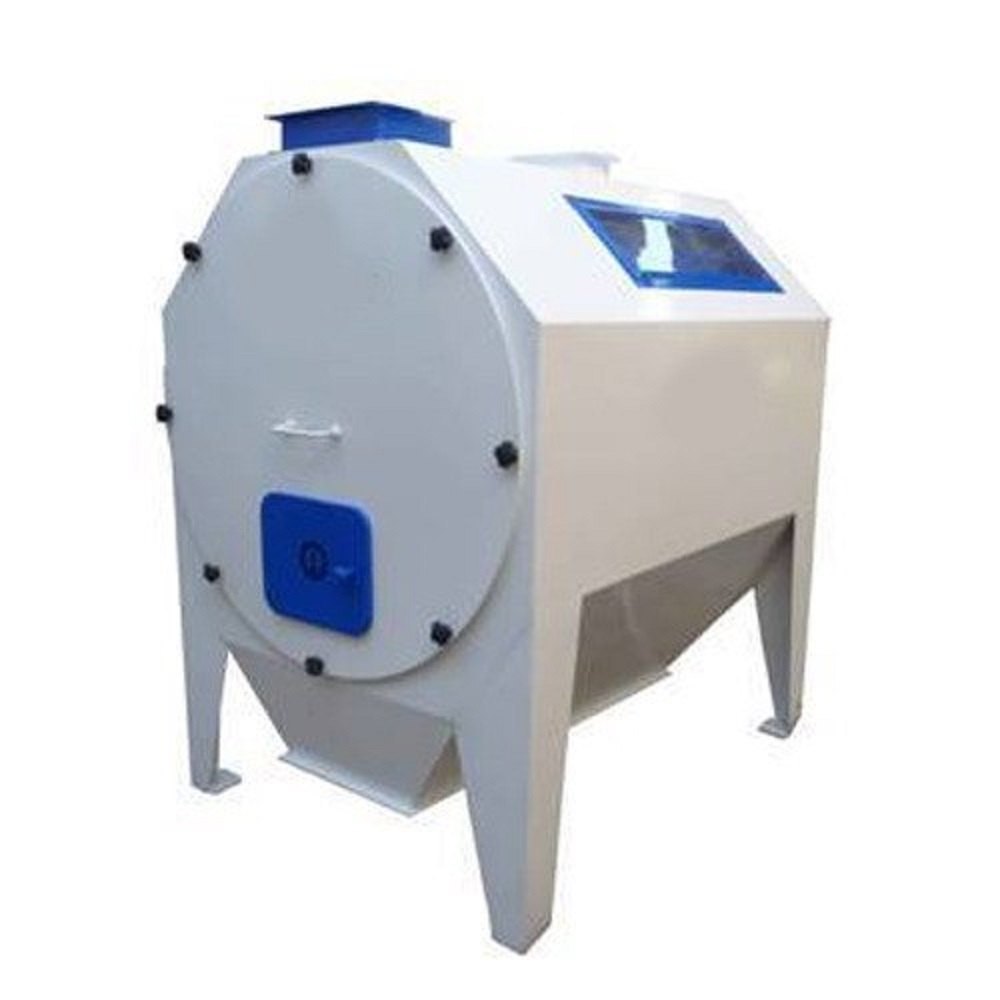

Drum Sieve is a rotary screening machine used for the preliminary separation of oversized and fine impurities from incoming material. It is suitable for paddy, wheat, pulses, spices, soybean, peas, and more grains.
Key Features
- Continuous, uniform screening performance.
- Effective removal of straw, husk & oversized impurities.
- Heavy-duty steel construction with compact design.
- Horizontal rotating drum ensures steady material flow.
- Low power consumption with dependable operation.
- Enclosed body with dust aspiration & easy maintenance access.
How Our Drum Sieve Machine Works
Step-by-step process for efficient grain cleaning and impurity removal
Raw Grain Intake
Feeding raw grains into the machine
→
Screening Process
Removes impurities and dust using sieves and airflow.
→
Clean Grain Output
High-quality and Clean grain is collected.
→
Next Processing
Grain moves to the next stage for further processing.
Ensures higher efficiency and reduces load on downstream machines
Technical Specifications & Capacity
| Model | Capacity (MT/Hrs.) | Dimensions (mm) | Weight | Power Req. | ||
|---|---|---|---|---|---|---|
| Length | Width | Height | ||||
| FTRRDS | 6 to 8 TPH | 2062 | 1210 | 1827 | 700 KG | 2 HP |
| FTRRDS | 12 to 16 TPH | 1940 | 1200 | 1550 | 850 KG | 2 HP |
Suitable for Other Grain Milling Process
Wheat Milling
Rice Milling
Pulse Milling
Maize Milling
Soyabean MillingFrequently Asked Questions (FAQs)
What is a Rice Cleaning Drum Sieve Machine, and how does it work?
A Drum Sieve Cleaning Machine is a rotary screening system used to separate grains from large and small impurities. The rotating drum with perforated screens allows clean grain to pass through while removing oversized materials.
What impurities can a drum sieve remove from paddy?
The machine removes impurities like straw, dust, stones, husk, sticks, and other foreign materials from raw grains during the pre-cleaning stage.
Why is a drum sieve important in grain processing plants?
A drum sieve helps protect downstream machines, improve grain quality, and increase processing efficiency by removing large impurities before milling or storage.
What is the capacity of a drum sieve cleaning machine?
The capacity varies depending on the model and design, but most drum sieve machines handle several tons of grain per hour, making them suitable for small to large grain processing plants.
Which grains can be cleaned using a drum sieve machine?
Yes, a drum sieve machine can clean various grains such as wheat, rice (paddy), maize, barley, millet, and other cereals before further processing.
